1

Compact design, fashionable appearance, easy to load paper

2

Supports  multi  1D  barcode  and  QR  code  printing

3

Support  printer  status  monitoring  function

4

Support  printing  queuing  ticket  function

5

Support  different  interface  combination

6

Up to 300mm/s high speed, low noise printing

7

48 or 80mm adjustable paper separator for option

8

150KM long life printer head

9

Supporting wall mounting

Model

NGP-TP800UW

Name

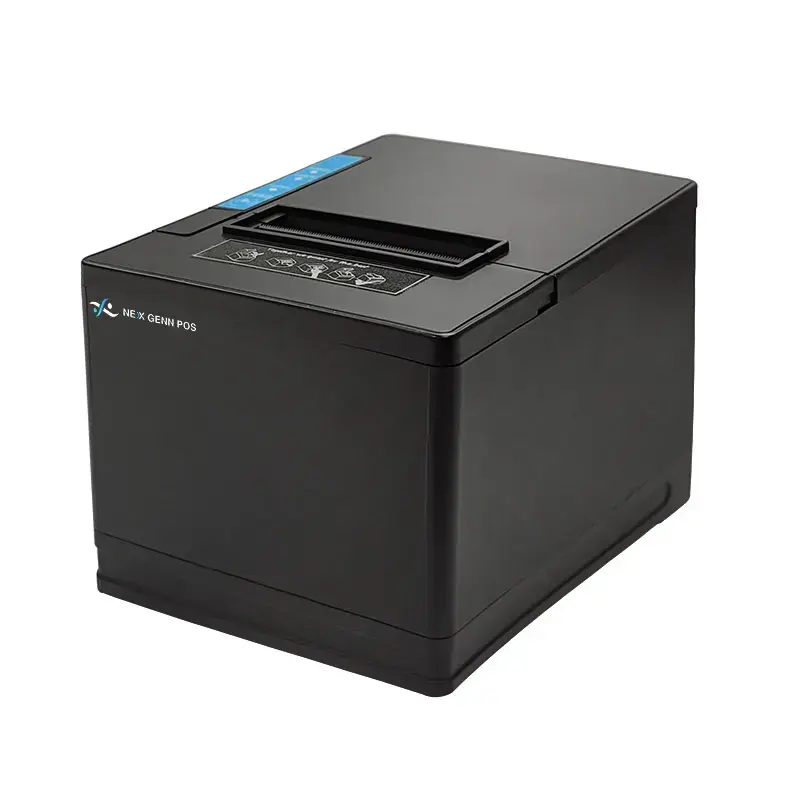

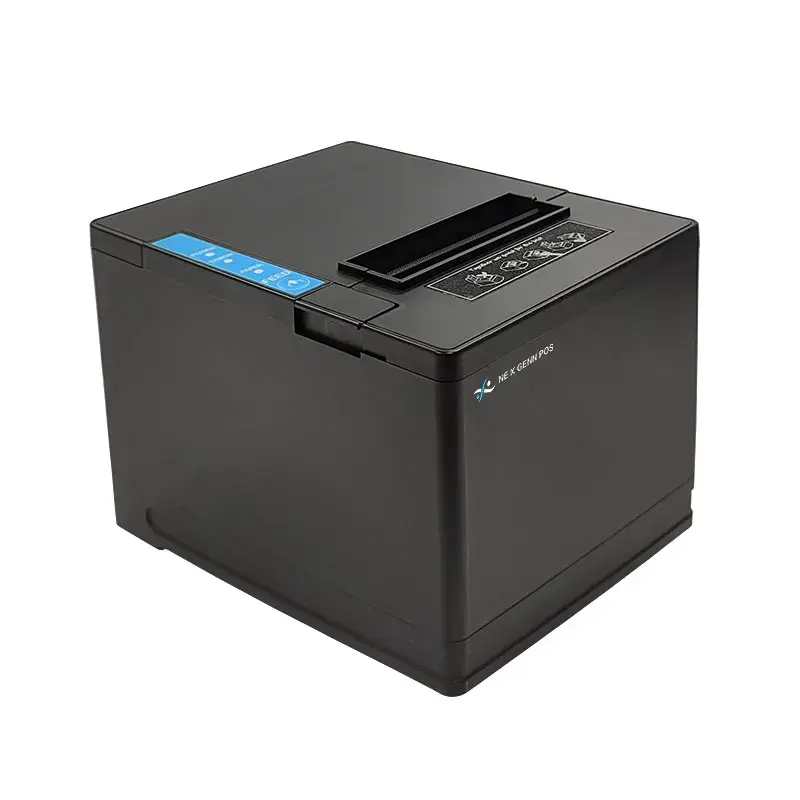

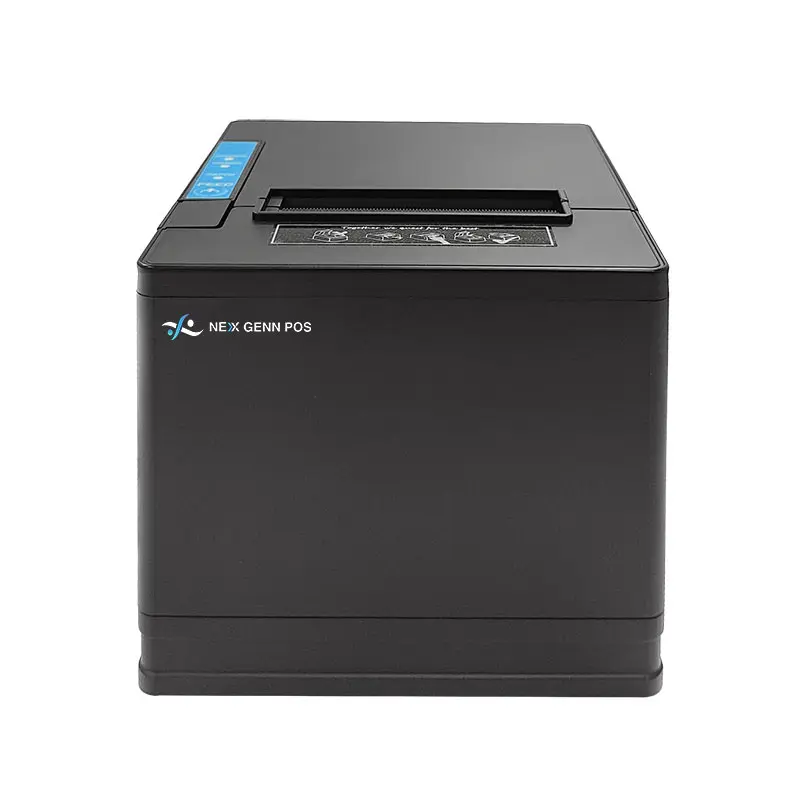

80mm desktop thermal printer with auto cutter

Color

Black

Optional interface

USB + WIFI

Power Supply

Input AC 100V-240V, Output DC 24V/2.5A

Cash drawer

Printer head lifespan

150 KM

Cutter

Auto cutter

Sensors

Paper out, cover open, cutter jam, paper jam, black mark

Accessories

Data cable, power adaptor, power cord, paper roller, CD, manual

OS supporting

iOS / Android / Windows / Linux

Safety standards

CE, FCC, Rohs etc.

Printing method

Direct thermal line

Resolution

203 DPI

Printing speed

200–300 mm/s depending on model

Print width

72 mm

Graphics printing

Supports bitmap download & print (each max 20K)

Printing Command

Compatible with ESC/POS

Barcode

UPC-A, EAN13, ITF, Codabar, Code93, Code128, QR code

Character size

Font A 12×24 dots, Font B 9×17 dots; multilingual support

Paper type

Thermal roll paper

Paper width

48–80 mm (optional)

Paper thickness

0.06–0.08 mm

Paper roll diameter

80 mm Max

Dimension

180×142×136 mm

Weight

1.65 kg

Working Temp & Humidity

0–45 °C, 10–80% RH

Storage Temp & Humidity

-20–60 °C, 10–90% RH
