1

High Performance imaging technology

2

High compatibility for all major 1D and 2D symbols

3

Can read the barcode on the screen and color barcode

4

Multi special function setting supported

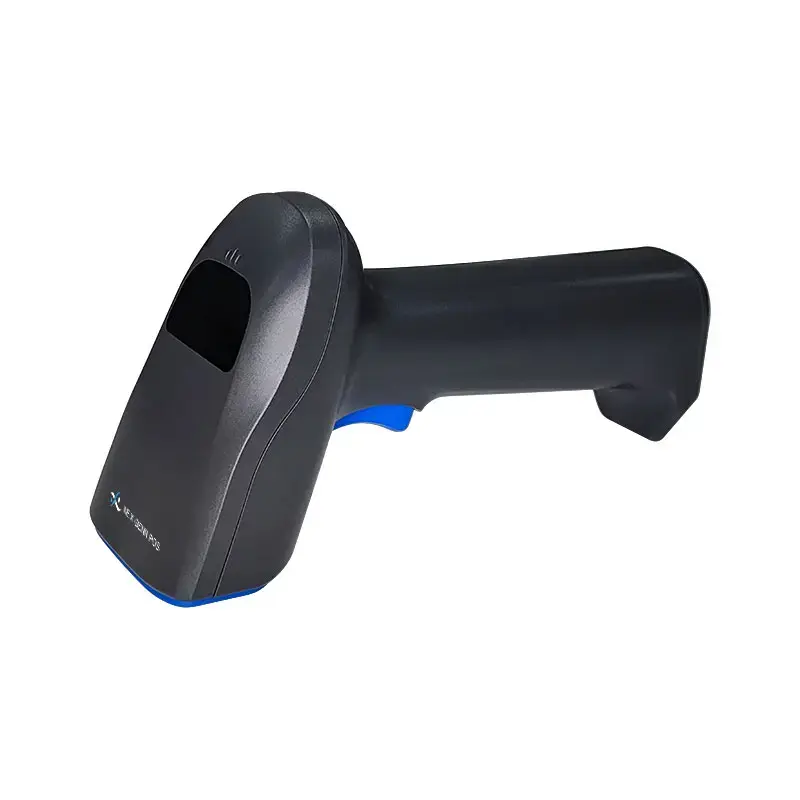

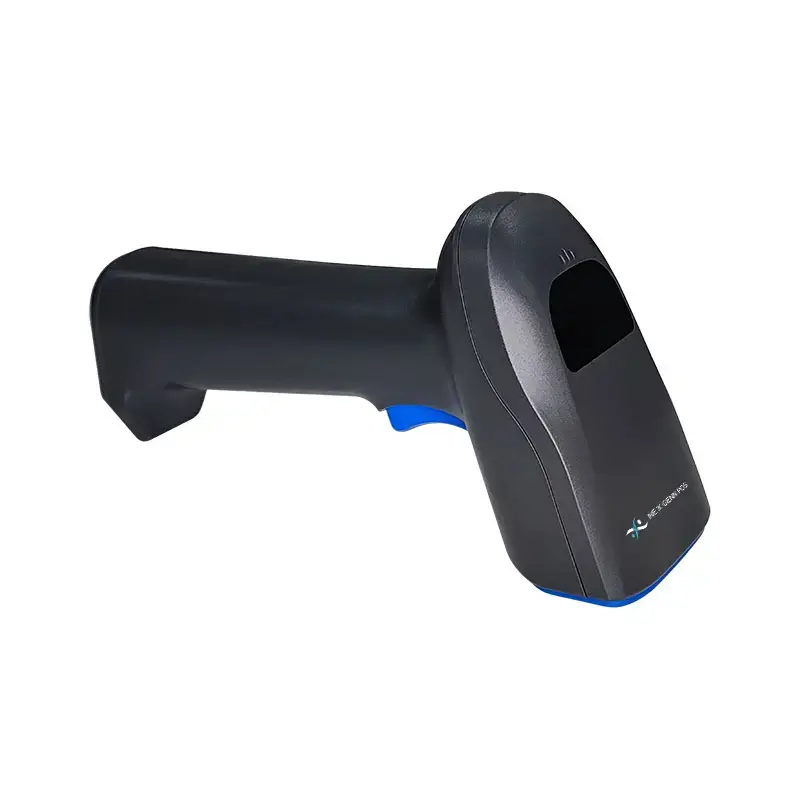

Model

NGP-BS-W230

Color

Black + Blue

Material

ABS+PC

Current

Working current(Standard): <156mA; Standby current(Standard): <80mA

Input Voltage

3.3 VDC (+/- 10%)/500mA

Interface

Reading Indicators

LED Light, Buzzer

CMOS Sensor

640×480 pixels, 0.3 MP Rolling Exposure

Light Source

LED White Light

Aiming Light

Small Red Frame

Resolution

Trigger mode

Manual, Continuous scanning, Auto-sensing

Shock resistance

1.2m free fall on concrete surface

Printing contrast

Barcodes

1D: All standard 1D codes including GS1 Data Bar™ linear code can be automatically distinguished and decoded.

2D: Azote Code; Data Matrix; Maxi Code; QR Code; Hanin; Micro QR Code.

Stack Code: GS1 Data Bar Expanded Stacked; GS1 Data Bar Stacked; GS1 Data Bar Stacked Omnidirectional; GS1 Data Bar Composite; MicroPDF417; PDF417.

Typical depth of Field

Precision  Barcode  Depth of Field

5 mil  Code39  45mm–125mm

13 mil  EAN-13  65mm–230mm

15 mil  Code128  55mm–350mm

15 mil  QR  35mm–190mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Reading Angle

Pitch: 0-360°; Roll (Tilt): ±60°; Skew (Yaw): ±60°

Weight

Net: 114 g

Dimension

160*64*86mm

Package box

195*105*80mm/0.243kg

50 in 1 carton

560*40*430mm/13.5kg

Working Temperature & Humidity

0 to 45 °C, 10%–80% RH, No condensation

Storage temperature & humidity

0 to 45 degrees centigrade, 10%~80% No condensation
